Small Engine Carburetor Troubleshooting

Small Engine Carburetor Trouble Shooting

Your Problem Will Likely Be Loose Battery Connections, Flat/Faulty Battery Or Faulty Starter Solenoid.


CAUSES

01. Tank - Outlet hole inside the tank blocks with grit stopping or slowing fuel flowing to the carburetor

02. Cap - Cap allows the tank to breath, when the cap vent fails it seals the tank stopping fuel flow

03. Lines - Leak at connection points and on occasion can block stopping fuel flow

04. Tap - Leak, causing fire risk

05. Fuel filter - Block or slow fuel flow to the engine

06. Pump - Fail causing a no start(Not fitted to all mowers)

07. Carburetor - Block, under fuel and over fuel causing no start or poor running

08. Fuel solenoid - Fail, stopping fuel flow (Not fitted to all mowers)

09. Intake manifold - Leak, causing engine surging

10. Refueling can - Often the source of the dirt

11. Air filter - Can block causing no start or poor running with black smoke

Most Common Cause

The main issue with small engine carburetors is gumming (old gas), cleaning the carb usually solves the problem. If your not sure you have a fueling issue - perform a quick Gas Shot Test.



This guide will help you diagnose and fix the fault quickly. Although this guide covers a tractor mower carburetor repair, it will work for all small engine four stroke engines as they all run very similar gas systems.



There are many components in the fuel system that can cause issue, but by far the most common fault - Carburetor contamination.





Gumming?

Basically it's old stale gas that turns to a sticky gel, it cloggs up the tiny passages of the finely balanced carburetor. Cleaning usually solves the problem, but if it's bad, don't waste your time cleaning, just go ahead and change out the carburetor.





How Does it Happen?

As you know, Ethanol fuel is blended with regular gas, that's not a problem for cars, but it is for small engines. Typically, the small engine is put away for winter with the gas still in the tank.



The ethanol blend attracts moisture and the alcohol content in the gas evaporates. The result is gumming and rust - it's a carb killer.



To prevent this happening I use a gas stabilizer at the end of this season, mixed with the gas, it'll keep it fresh for up to 2 years, so next spring it's pull and mow.



I use a product called Sta-bil gas treatment, 1 ounce treats up to 2.5 gallons, it prevents gumming and cleans the fuel system. It can be used in all gas powered kit including 2 stroke engines. You can use it all season, I only use it at the end of the season and when winterizing. Check out Sta-bil on Amazon.



You can read more about Ethanol gas, your tractor mower and how to Stop Gumming here.



Of course not all fueling system faults are gummed up carburetors - running some simple tests will point you in the right direction.









mower carburetor

Gumming

Gas turns to a gel and blocks everything up - ya nasty.

When it's bad, I prefare to replace the carb. Cleaning doesn't guarantee that you get it all, then your tearing it down again.

Replace

Don't even think about it, Order a new one!


Mower carburetor

Gumming


riding mower carburetor

Gas turns to a gel and blocks everything up - ya nasty.

When it's bad, I prefare to replace the carb. Cleaning doesn't guarantee that you get it all, then your tearing it down again.

Replace


riding mower cables

Don't even think about it, order a new one!

Symptoms

How my customers describe fuel system faults, one or more of these may sound familiar. Customer complaints include:



"Mower stops for no reason"; "I put the mower away for winter and now it won't start"; "Engine runs rough"; "Engine splutters when I cut on a slope"; "Engine dies when I start cutting grass"; "Black smoke from the muffler"; "Engine revving up and down by itself "; "Mower only runs on choke"; "Mower blows white smoke".







Mmmmm


riding mower

Where to start?

Ride-on mower engine

Mmmmm

Where to start?

Fault Finding

At this point, it's assumed that you have ran the Gas Shot Test and Choke System Check, and they both confirmed a fueling fault. If that is the case your symptom will fit one of the following descriptions:



Mower won't start; Runs rough; Blowing black smoke; Starts then dies; Surging; Lacks power; Only runs with choke; Gas leaking into the oil; Blowing white smoke.





Ride-on mower carburetor

OEM

Carburetors aren't expensive or difficult to fit. Sometimes it's better to just go ahead and replace the whole unit.

Carburetors do wear out and I replace lots of them.

OEM


riding mower carburetor

Carburetors aren't expensive or difficult to fit. Sometimes it's better to just go ahead and replace the whole unit.

Carburetors do wear out and I replace lots of them.

Fuel Solenoid

A fuel solenoid is an electro magnetic valve that simply opens as you turn on and run the mower engine. When the valve is in the open position, it allows gas into the engine. The purpose of the valve is to close at shutdown and prevent gas leaking into the engine which helps prevent engine run-on.



Not all mowers will have one fitted, but if you have it will be easy to spot. It lives on the bottom of the carburetor bowl and has an electrical wire and connector fitted.



To test the solenoid, turn the ignition on (without starting the motor), locate the sensor and dissconnect the wire, now reconnect and listen for the click sound. If you don't hear a click, you could have solenoid failure or a power supply problem.



Removing the solenoid is the best way to test, that allows you see it actually open and close. If you have a power supply problem, use a dvom or test light to check for power.



If the solenoid fails the mower won't start, and a failing solenoid will cause problems like, only working when it wants to, or shuting down the mower. Changing out the solenoid is easy.














Solenoid Test

Unplug


mower gas solenoid mower gas solenoid test mower gas solenoid

Remove the connector to test for the click sound, or use a test light to check for power. Briggs and Kohler solenoids shown here.

Ride-on mower solenoid Ride-on mower solenoid test Ride-on mower solenoid

Test

Remove the connector to test for the click sound, or use a test light to check for power. Briggs and Kohler solenoids shown here.

Fuel Bowl Clean

In some cases you may only need to drain the fuel bowl. In other cases you will need to remove the carburetor and clean it thoroughly. Your carburetor may look different, but the process is the same.



In this part of the guide I will drain just the fuel bowl and check fuel flow. You can find your fuel bowl behind the air filter. You don't need to remove the air filter housing to access the bowl.



Remember, if your Ethanol gas is older than one month, it's stale, so cleaning the bowl won't make it go. You need to drain the tank, carburetor bowl and fill with fresh gas. I use the Briggs and Stratton oil extractor to remove stale gas and grit from the bottom of the gas tank, it's easier than removing the tank. Check out Briggs extractor on Amazon.



If this works out, great!  If not, I wrote this guide, it will walk you through the whole process - Remove & Clean Carburetor.










Bowl Clean

Remove


mower carburetor mower carburetor bowl mower gas solenoid

The carburetor is located behind the air filter and you usually have enough room to work without removing any other components.

Turn the gas off, if you don't have a tap, use a grips to gently grip the line.

This type bowl doesn't have a solenoid. Remove this bowl by removing the bowl bolt.

An o ring gasket is used to seal the bowl to the carburetor. Usually it stays on the carburetor side and that's ok, you can leave it there.

Clean the bowl, and when refitting use some lube on the o ring seal to prevent pinching.

Often no matter how careful you are, the bowl gasket will leak gas, if so, the only fix is to replace it.

Remove


mower gas solenoid mower gas solenoid

This carburetor has a fuel solenoid. To remove it, dissconnect the wire connector and use an open ended wrench between the bowl and solenoid.

Sometimes you can just turn the bowl by hand. Remember to lube the gasket when refitting the bowl.

Remove


mower gas solenoid mower gas solenoid

Remove the fuel bowl drain bolt, which on some models its also the fuel solenoid.

Your bowl may have a bolt or two screws, and in some cases the whole bowl will come off.

Allow the fuel in the carburetor to drain out, catch in a suitable container and have some old rags handy.

If you have any doubts about fuel quality, drain the tank and fill with fresh gas.

Flow


mower gas solenoid mower gas

Carburetor bowl type with two screws can be tricky to remove, so if that's your type just remove the solenoid, allow the gas to drain, reassemble and test. Often this is enough to fix the problem.

But before you reassemble check fuel flow on which ever type bowl you have.

Turn the fuel on: If fuel flows - Refit fuel bowl bolt and test mower.

If no fuel flow - Move on to Fuel flow check.

Bowl Cleaning


Ride-on engine

Locate

The carburetor is located behind the air filter and you usually have enough room to work without removing any other components.

Turn the gas off, if you don't have a tap, use a grips to squeeze the line.

Remove

This type bowl doesn't have a solenoid.

Remove this bowl by removing the bowl bolt. An o ring gasket is used to seal the bowl to the carburetor.

Usually it stays on the carburetor side and that's ok, you can leave it there.

Clean the bowl, and when refitting use some lube on the o ring seal to prevent pinching.


Ride-on mower carburetor Ride-on mower carburetor
Ride-on gas solenoid Ride-on carburetor

Remove

This carburetor has a fuel solenoid.

To remove it, dissconnect the wire connector and use an open ended wrench between the bowl and solenoid.

Sometimes you can just turn the bowl by hand.

Remember to lube the gasket when refitting the bowl.

Often no matter how careful you are, the bowl gasket will leak gas, if so, the only fix is to replace it.

Remove

Remove the fuel bowl drain bolt, which on some models its also the fuel solenoid.

Your bowl may have a bolt or two screws, and in some cases the whole bowl will come off.

Allow the fuel in the carburetor to drain out, catch in a suitable container and have some old rags handy.

If you have any doubts about fuel quality, drain the tank and fill with fresh gas.


Ride-on mower carburetor Ride-on mower carburetor
Ride-on gas solenoid Ride-on carburetor

Flow

Carburetor bowl type with two screws can be tricky to remove, so if that's your type just remove the solenoid, allow the gas to drain, reassemble and test. Often this is enough to fix the problem.

But before you reassemble check fuel flow on which ever type bowl you have.

Turn the fuel on: If fuel flows - Refit fuel bowl bolt and test mower.

If no fuel flow - Move on to Fuel flow check.

Fuel Flow

If you removed the fuel bowl or drain bolt and found no fuel flowing, or the carburetor needle is leaking gas into the oil. This guide will help you find and fix these problems, it works just the same for walk behind mowers, lawn tractors, ride-on mowers, tillers, snowblowers or any 4 stroke small engine.



Riding lawn mower fuel systems are either gravity feed or pump feed, your mower will be one or the other. You will be able to identify which system you have by following the fuel line from the fuel tank. Go ahead and identify your system, and carry out the checks as directed.







Hydro-locking

Gas leaks into the cylinder, when the mowers not in use, filling it right up. This prevents the engine from cranking over, because the piston has no room to move. Some owners think that the battery is flat, and try jump starting without success.



Other tell tail signs of hydro-locking are a stink of gas in the garage, gas on the floor of the garage, mysterious loss of gas from the tank and a very high oil level that stinks of gas.



Some mowers may start when most of the gas leaks from the cylinder into the oil in the crankcase. The operator then notices lots of white smoke, rough running, stalling and oil leaks.



The fix - replace the whole carburetor, because often just replacing the needle seal doesn't work. Fitting a gas tap, and turning off the tap when the mowers not in use will prevent further problems.



This guide will show you how to fit a tap and the tools needed - "Fitting a gas tap".



Gravity Fuel System

A fuel line from the tank will go to a fuel tap, then a fuel filter and on to the carburetor. (Tap may not be fitted) This system is prone to leaking gas into the oil and causing hydro-locking.





Pump Fuel System

A fuel line from the tank will go to a fuel tap then a fuel filter then a fuel pump and finally to the carburetor. (Tap may not be fitted)






Gas Flow Test

Remove


mower carburetor mower carburetor bowl

A gas tank needs to breath, when fuel leaves the tank it needs to be replaced with air.

A sealed tank will prevent fuel from flowing. Make sure you have gas in the tank.

Remove gas cap and check flow.

Check the fuel tank for grit - the out let hole is small and blocks easily. You may have to remove tank to clean thoroughly.

Filter


mower gas line mower gas solenoid

Examine the fuel lines from the tank to the carburetor, checking for kinks or damage.

Some fuel filters will be a see through bottle type, if its dirty - Change it. Arrow to carb.

Remove


mower carburetor bowl mower gas flowing

If you can, remove the bowl - when the float is in the droped position gas should flow.

Needle


mower carb mower float mower float and needle

Remove the float and needle, check condition. A worn needle turns pink in color.

The needle seals the flow of gas when the float is in the up position.

A worn needle can block flow or allow cause a leak.

Flow Test


Remove

A gas tank needs to breath, when fuel leaves the tank it needs to be replaced with air.

A sealed tank will prevent fuel from flowing. Make sure you have gas in the tank.

Remove gas cap and check flow.

Check the fuel tank for grit - the out let hole is small and blocks easily. You may have to remove tank to clean thoroughly.


Ride-on mower gas tank Ride-on mower tank
Ride-on gas solenoid Ride-on carburetor

Filter

Examine the fuel lines from the tank to the carburetor, checking for kinks or damage.

Some fuel filters will be a see through bottle type, if its dirty - Change it. Arrow to carb.

Remove

If you can, remove the bowl - when the float is in the droped position gas should flow.


Ride-on mower carburetor Ride-on mower carburetor
Ride-on gas solenoid Ride-on carburetor Ride-on carburetor

Needle

Remove the float and needle, check condition. A worn needle turns pink in color.

The needle seals the flow of gas when the float is in the up position.

A worn needle can block flow or cause gas to leak into the oil.

When this happens, I prefare to replace the complete carburetor.

Spray

Blow some carb cleaner into the needle seat on the carburetor.

Still no flow - Remove & clean carburetor, consider replacing complete unit.

Some carburetors have the seal in the tip of the needle and others have the seal in the carburetor. Carb removed for demo.


Ride-on mower carburetor Ride-on mower carburetor

Spray


mower starter carburetor mower carburetor

Blow some carb cleaner into the needle seat on the carburetor.

Still no flow - Remove & clean carburetor, consider replacing complete unit.

Some carburetors have the seal in the tip of the needle and others have the seal in the carburetor. Carb removed for demo.

Pump


mower gas filter mower gas pump

The pumped system is as said very similar. Check that the gas filter supply to the pump is ok.

The fuel pump, operates by the pulsing of crankcase pressure which is supplied by the hose pipe seen in the center of the lower picture.

Check this pipe is secure and undamaged, sometimes they perish.

To test the pump - Remove the output line on the left and crank over the engine. No fuel flow - Replace pump.

Ride-on mower gas filter Ride-on mower starter

Gas Pump

The pumped system is as said very similar. Check that the gas filter supply to the pump is ok.

The fuel pump, operates by the pulsing of crankcase pressure which is supplied by the hose pipe seen in the center of the lower picture.

Check this pipe is secure and undamaged, sometimes they perish.

To test the pump - Remove the output line on the left and crank over the engine. No fuel flow - Replace pump.

Remove & Clean Carburetor

Okay, I will assume you have tried cleaning the bowl as per the above guide without success. Now you need to remove the carburetor and clean it.



Only basic tools are needed, but a can of carburetor cleaner make life a whole lot easier. In the workshop I use Wd40 cleaner, check it out on Amazon. A container for nuts and bolts, some rags, and take lots of pictures to help you remember where levers, gaskets and springs go.



Your carburetor may not be the same as the one used here, but yours will look very similar and the process is the same. Now seat belt on!











Remove


mower engine cover mower engine cover

Remove air filter and engine plastic cover and remove choke cable.

Remove


mower gas line mower gas line

Turn the gas off or gently squeeze the gas line with a grips. Remove the two nuts holding the intake pipe.

Remove

Remove air filter and engine plastic cover.


Ride-on valve lash
mower choke cable

Remove

Remove choke cable.

Remove

Turn off gas and remove fuel line. If you don't have a gas tap use a grips to gently squeez the line.


Ride-on gas line
mower intake pipe

Remove

Remove intake pipe.

Remove

Unplug solenoid valve and remove both carburetor bolts.


Ride-on carburetor
mower choke cable


Take note of linkage, spring and gasket locations and orientation.

Remove

Unplug spring and lever.


Ride-on carburetor
mower choke cable

Teardown

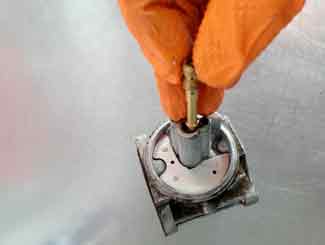

Remove the float by sliding the pin out and removing the needle.

When worn the needle seal turns pink. Carburetor kits will include new bowl gaskets and needle seal.

Remove

Remove screw.


Ride-on carburetor
mower choke cable

Remove

Remove the main jet with a flat screwdriver.

Jets are made from brass which is a soft metal and will damage easily. Be sure the screwdriver is a good fit.

Remove

The dirt collects in the jet, it has small port holes which fuel flows through.


Ride-on carburetor
mower choke cable

Clean

Clean the jet really well, the port holes may not look dirty, but a build up around them makes them smaller and restricts gas flow.

Use a strand of wire from a wire brush and run it through the holes.

Check

The bowl gasket may be  distorted or perished. Over-tightening or pinching will cause it to leak.

To avoid damage, lube o ring on reassembly.


Ride-on carburetor
mower choke cable mower choke cable

Remove

When removing the fuel/air mix screw, count how many turns it takes to remove, and refit to the same number.

Spray

Use a good quality carb cleaner and compressed air if available.

Spray all passages and port holes.


Ride-on carburetor Ride-on carburetor Ride-on carburetor
mower choke cable

OEM

A new carburetor makes a bit difference, cleaning won't guarantee it runs sweet.

So, if cleaning doesn't work out, go ahead and treat you mower to a new carb.

Remove


Riding mower carburetor Riding mower carburetor

Unplug solenoid valve and remove both carburetor bolts. Take note of linkage, spring and gasket locations and orientation.

Remove


mower carburetor mower carburetor

Unplug spring and linkage. Remove the float by sliding the pin out and removing the needle.

When worn the needle seal turns pink. Carburetor kits will include new bowl gaskets and needle seal.

Ride-on mower oil level too high

Finally

When rebuilding, replace gas filter. Clean your gas can and fill with fresh gas.

If your storing the mower for periods longer than a month, use a gas stabilizer. It will prevent gumming.

Remove


Riding mower carburetor Riding mower carburetor

Remove feed screw and remove the main jet with a flat screwdriver.

Jets are made from brass which is a soft metal and will damage easily. Be sure the screwdriver is a good fit.

Jet


riding mower carb jet riding mower carb jet

Clean the jet really well, the port holes may not look dirty, but a build up around them makes them smaller and restricts gas flow.

Use a strand of wire from a wire brush and run it through the holes.

Check


Riding mower carburetor gaskets

The bowl gasket may be  distorted or perished. Over-tightening or pinching will cause it to leak.

To avoid damage, lube o ring on reassembly.

Cleaning


mower carburetor mower carburetor

When removing the fuel/air mix screw, count how many turns it takes to remove, and refit to the same number.

Spray


mower carburetor mower carburetor mower carburetor

Use a good quality carb cleaner and compressed air if available.

Spray all passages and port holes.

OEM


mower solenoid test

A new carburetor makes a bit difference, cleaning won't guarantee it runs sweet.

So, if cleaning doesn't work out, go ahead and treat you mower to a new carb.

Finally


gas can

When rebuilding, replace gas filter. Clean your gas can and fill with fresh gas.

If your storing the mower for periods longer than a month, use a gas stabilizer. It will prevent gumming.
