Mower Deck Belt Replacement

Replacing belts on your mower is like replacing tires on your car, there's only so many miles in them. Replacing a deck belt can be a challenge, especially if the mower throws the belt and you don't know the routing, but we'll get it figured out!



So how difficult is mower deck belt replacement? Getting the correct belt is the first important step. Some manufacturers place a label detailing the belt part number and belt routing. Try under the hood, or under the foot rest, if not check out "Belt routing".



Deck types vary, some are easy to work on, some not so much. It's important to check over the deck looking for any damaged or loose components, especially if your old belt was damaged and not just worn out. You don't want to damage the new belt needlessly.



Most mowers won't require deck removal to fit the belt, others will. So take some time and consider the routing, don't put extra work on yourself. Take lots of photo's, it saves time and head scratching later.









What's Involved?

Fitting the new belt means removing some plastic protective covers. And in most cases it involves wrapping the belt around the pulleys and making sure the belt guide (guide not on all pulleys) is on the out side of the belt. The last pulley to fit is the crank pulley (engine pulley).



Tension-ed or Not

A tension-ed belt, is a deck drive belt that is always tight on the pulleys. Push button blade engage type mowers usually run an always tension-ed belt. Replacing it will require man handling the belt on to the side of the crank pulley, then turning the crank pulley clockwise by hand until the belt slips on.



If your mower has a lever then you likely have a slack belt which is then tension-ed by moving the blade engage lever. This type belt is easier to replace and will take no time at all.







mower deck belt

Tensioned

This type belt is always tight on the pulleys.

Un-Tensioned

This type belt setup is slack on the pulleys until you engage the blades.


tractor mower belt tractor mower blade lever

Tensioned


riding mower belt

This type belt is always tight on the pulleys.

Un-Tensioned


riding mower belt riding mower deck lever

This type belt setup is slack on the pulleys until you engage the blades.

What Deck Type?

Cutting deck set up types vary: side discharge; rear discharge; mulching decks; out front decks; cutting and sweeping. Then they can have features such as single blade; twin blade; tri blade; tension-ed belt; manual tension-ed belt; electromagnetic blade engage; fan assisted deck; timed overlapping blades and the list goes on.



The one thing they all have in common - the deck drive belt. It's how engine power is transfered into cutting power.







Timed Deck

A timed deck means both your mower blades are set at a fixed angle in relation to each other. The tooted belt maintains the blade position, this allows the blades to overlap. Some say the overlapping blades gives a superior cut, I like the lawn finished with the overlapping twin cut, especially the smaller decks.



This deck type is also reffered to as an interferance deck. They call it Interferance because if the blades go out of time, they'll smack each other.



Resetting the timing of the blades or replacing the belt is a job that can be done without much difficulty, but it does require removing the deck, tension assembly and various plastic guards. No special tools are needed.







Rear


riding mower deck

Rear discharge great at collecting grass, but doesn't like long grass so much.

Timed


riding mower battery test

Timed deck has a tooted belt which can break or slip out of time. Timing the blades allows them to overlap.

Mulching


riding mower deck

Some decks will have a flap that closes off the chute when the operater wants to mulch.

Side Discharge


riding mower deck

Side discharge best for tall grass and rough terrain.

Ride-on mower blades

Rear

Rear discharge great at collecting grass, but doesn't like long grass so much.

Timed

Timed deck has a tooted belt which can break or slip out of time. Timing the blades allows them to overlap.


Ride-on mower deck
Ride-on mower deck

Mulching

Some decks will have a flap that closes off the chute when the operater wants to mulch.

Side Discharge

Side discharge is great for tall grass and rough terrain.


Ride-on mower deck

Measuring The Belt

A belt will be marked with a type code, length and part number. Belts are usually measured by their inside length (Li) or outside length (La). If you can find this info on the side of your old belt, great!, but usually it's worn away. Some mowers like Husqvarna place a sticker in side the hood with a list of helpful part numbers like belts, filters, plugs etc.







What Belt Width?

The width and depth of a belt is also very important. A new V belt should fit snuggly into a v pulley, the belt should sit just proud of the pulley shoulder. A belt that sits further down into the pulley, is worn out.





What Belt Length?

If your belt was shredded, then you'll need your make and model number to order the correct belt. The easiest way to measure an old belt - use a string to follow the outside of the belt, now measure the string. This measurement will be representred on belts by the letters La (outside measurement), or run the string around the inside of the belt, this measurement is the Li measurement.



A faster way to measure an intact belt is to make a circle of the belt and measure inside to inside, then multiply by 3.14, the result is the Li belt size. Mmmm Pie!





Ride-on mower belts

Sizing

Sometimes easier said than done!

Sizing


riding mower belts

Sometimes easier said than done.

Markings

Check under the hood of your mower, you may get lucky with a part number sticker, but be cautious with the Husqvarna labeling, they are often wrong belt part numbers.

Check your old belt for markings, if none, get a tape and some string.

These belts are measured in mm.


mower belt mower drive belt mower drive belt
Ride-on deck belt Ride-on deck belt

Pulley

The new belt will be the full width of the pulleys.

Worn belts usually stretch in length and become narrow in the width.

Markings


riding mower belt sticker riding mower belt riding mower belt

Check under the hood of your mower, you may get lucky with a part number sticker, but be cautious with the Husqvarna labeling, they are often wrong belt part numbers.

Check your old belt for markings, if none, get a tape and some string.

These belts are measured in mm.

Pulleys


riding mower belt sizing riding mower belt

The new belt will be the full width of the pulleys.

Worn belts usually stretch in length and become narrow in the width.

Check Belt Routing

Belt routing, needless to say is important. On some mowers it's possible to put a belt on backways, which makes the blades turn backwards. Not much use for yard work.



If you can, make a diagram or take some pictures of the old belt in place. First, you'll need to remove both plastic protection pulley covers, one each side. Some mowers have a handy sticker showing the deck belt routing under the foot rest.



That's great advice, but what if your belt has snapped or derailed? Then you'll need to check out the links below. Bear in mind, even if you don't see your maker in the list, check the link out anyway, because lots of makes share of the same decks.



Look at the pulley configuration to see if yours looks similar.







Deck Sticker


tractor mower deck

Check under the foot rest of your mower, some models have a belt routing sticker.

This sticker is on a Husqvarna tractor.

Common Deck


tractor mower deck

This is a common deck fitted to lots of makes.

Brake


tractor mower deck

This type deck has a Mandrel brake, apply the blade engage lever after you have removed the belt from the engine pulley.

This allows you remove the belt.

mower deck

Sticker

Check under the foot rest of your mower, some models have a belt routing sticker.

This sticker is on a Husqvarna tractor.

Common Deck

This is a common deck fitted to lots of makes.


tractor deck
mower deck

Brake

This type deck has a Mandrel brake, apply the blade engage lever after you have removed the belt from the engine pulley.

This allows you remove the belt.

What Belt Type?

Belts are belts, right! Well, No. The correct belt is crucial. An ill fitting or wrong type belt will cause endless trouble. Throwing the belt, vibration, poor cutting and collecting, and because the belt doesn't fit correctly, it won't last very long. I had one customer who fitted a belt that was so tight, it broke the end off the crankshaft, Oouch!!





There are many different types of belts, however when it comes to lawn mowers, they are usually fitted with a standard V type belt. Other belts used are AA belts, timed belts, poly V belts.



Sure you can fit a basic quality belt with a polister cord but it's going to wear out quickly, for durability you'll want Kevlar, they cost more but last a lot longer. Some models will only work well with OEM belts, like John Deere and MTD.



So, I recommend fitting only OEM (Original Equipment Manufacturer). Fitting a belt can be a challange. Reassembling and discovering that doesn't work right, can be demorilising. Yes, an oem belt will cost a few dollars more, but you won't have to revisit the issue and the belt will last longer.









V Belts

V belts are so called because of their cross section shape (wider at the top than bottom). They are used almost exclusevly to drive power from lawn tractor engines to their transmissions. They are also used to drive deck blades. The V belt drives power fom one side of the belt only.



They come in different heights/widths and are catheterized. They are simply known as type A, B, C, D. The most common V belts used on mowers are the A and B types, and obviously they come in long list of lengths. Each belt is marked by type and belt length, it may also have a part number, unfortunately

the markings usually wear off, making the id process difficult.



AA Hex Belts

The AA belt is a double sided hexagonal belt, it is mostly used on tractor mower decks to drive the blades. The belts are unique as they have the ability to drive from either side of the belt.



Toothed Belts

A mower toothed or timed belt does two jobs, it transfers power and at the same time keeps the mower blades from hitting each other. The toothed belt is a very exact belt in that the teeth of the belt must match that of the mower cogs.



A Type

This is the most common type lawn tractor belt, it's used by many lawn tractor drive systems and most decks too.


Ride-on belt
mower belt

B Type

The B type belt is a heavy duty A belt, its older well fed brother.

AA Hex Type

This is a double faced belt, it gives greater flexability to deck design, as it allows both sides of the belt drive.

It's used on higher end tractor decks.


Ride-on belt
mower belt

Timed Belt

This type belt has become more popular in recent years. It's fitted to mower decks with overlapping blades.

A Type


Mower a type belt

This is the most common type lawn tractor belt, it's used by many lawn tractor drive systems and most decks too.

B Type


MOWER B TYPE BELT

The B type belt is a heavy duty A belt, its older well fed brother.

AA Hex Type


mower hex aa belt

This is a double faced belt, it gives greater flexability to deck design, as it allows both sides of the belt drive.

It's used on higher end tractor decks.

Timed Belt


mower timed belt

This type belt has become more popular in recent years. It's fitted to mower decks with overlapping blades.

Check Belt Wear

Belts have a difficult job and can be the cause of various issues. Regular inspection will tell you if your belt is at the end of its life.Things to look for are flat-spotting, glazing, cracking, fraying and contamination.



As you know a V belt should sit just proud of the pulley shoulder, if it's a lot lower than the shoulder of the pulley, it's worn out.









How Long do they last?

The life of a belt is hard to gauge, it really depends on how much grass your cutting and how heavy the work load, but usually we're talking years. Typically a belt should be changed after 3-4 years, but we know this doesn't happen.



A worn or damaged pulley can shorten the life of your belt. An engine or transmission oil leak can destroy the belt, you can try cleaning it, but it causes slip. A derailing belt can get twisted and damaged, a mower that trows belts regularly, probably has a worn or damaged pulley.





But the real killer of belts - tall heavy grass, it jams the blades which causes flat spots on the belt. The flat spot will then cause a lot of vibration which in turn can throw the belt.



Belt damage is usually caused on the first cut of the season when the grass is heavy. So if your grass is tall and heavy, just take a little off on the first pass and make a secound pass with the deck a notch lower. Yes it's twice the mowing, but it's better for your mower and your lawn.







Flat Spot


mower belt

Flat spotting is usually caused when the blade jams but the engine pulley keeps running. This has a grinding effect on the belt.

The flat spot will cause excessive vibration in the mowing deck. The fix - Replace the belt.

Blistering


mower belt

This can happen when a belt gets old, the material is starting to break down.

Your mower won't cut or collect very well. Better to take care of it now, before it breaks.

Cracking


mower belt

Cracking mostly happens to cheap belts. My advice is to only fit Kevlar long life belts.

Glazing


mower belt

This belt has a shiny hard surface, not much good for tracton.

A belt like this will cause horrible vibration in the mowing deck.

Fraying


mower belt

Wear and tear, this belt is at the end of it's useful life.

Flat Spot

Flat spotting is usually caused when the blade jams but the engine pulley keeps running. This has a grinding effect on the belt.

The flat spot will cause excessive vibration in the mowing deck. The fix - Replace the belt.


Ride-on belt
mower belt

Blistering

This can happen when a belt gets old, the material is starting to break down.

Your mower won't cut or collect very well. Better to take care of it now, before it breaks.

Cracking

Cracking mostly happens to cheap belts. My advice is to only fit Kevlar long life belts.


Ride-on belt
mower belt

Glazing

This belt has a shiny hard surface, not much good for tracton.

A belt like this will cause horrible vibration in the mowing deck.

Frayed

Wear and tear, this belt is at the end of its useful life.


Ride-on belt

Check Pulley Wear

A pulleys job is to route the belt around the chassis of the mower or mowing deck and transfer power from the engine pulley to the driven pulleys. As a rough guide, pulleys usually wear out at the same time as a belt, so best to check them while you have the belt removed.



Tension and idler pulleys should move freely, be quiet when spun and should feel smooth when turned. If they're worn, now's the time to take care of it, when a pulley bearing breaks it will likely damage the belt.









Pulley Types

Pulleys come in all sizes, some metal, some plastic. Tensioners and idlers will have a bearing fitted and when it wears out, the whole pulley is replaced. Pulleys are usually broken into two main types, flat or V.



A flat pulley is not a driven pulley, it runs on the back of the belt which isn't powered (unless it's on a AA belt).



A V pulley can be a driving, driven, tensioner or idler. A  V pulley is described as a driven pulley if it's connected directly to the output, such as a transmission or a blade Mandrial.



The driving pulley is the engine pulley, it's the pulley supplying the power. Both the driven and driving pulleys are fixed to shafts using a key and keyway.



A tensioner pulley is part of a moving arm, which when operated applies tension to a belt. A tensioner pulley can be a flat or V pulley.



A stationary pulley is usually known as an idler, and its job is to route the belt around the chassis of the mower, or mower deck, they can be flat or V type.







Pulleys


mower belt pulleys

Metal or plastic, V type or flat, driven or idle. So many choices.

V Pulley


mower belt

This is a V pulley, the driving side of the belt is making contact with the pulley.

Flat Pulley


mower belt

A flat pulley on a V belt set up is never a driven pulley. Its job is to change the direction of the belt and guide it to the next pulley.

Spin To Test


mower pulley test

You don't need to remove them to check. Spin them while the belt is off, they should be smooth and quiet. Changing them now is easy.

Bearings


mower belt

Most pulleys come with the new bearings pressed in place, the exceptions are driven pulleys (Mandrial, engine or transmission pulleys).

Pulleys

Metal or plastic, V type or flat, driven or idle. So many choices.


Ride-on belt
mower pulley

V Pulley

This is a V pulley, the driving side of the belt is making contact with the pulley.

Flat Pulley

A flat pulley on a V belt set up is never a driven pulley. Its job is to change the direction of the belt and guide it to the next pulley.


Ride-on pulley and belt.
mower pulley

Spin To Test

You don't need to remove them to check. Spin them while the belt is off, they should be smooth and quiet. Changing them now is easy.

Bearings

Most pulleys come with the new bearings pressed in place, the exceptions are driven pulleys (Mandrial, engine or transmission pulleys).


Ride-on pulley and belt.

Fitting A Belt

Fitting a cutting blade deck belt that is just worn is the easiest, as you can see the routing of the old belt and make a diagram or take pictures. Removing the old one also gives you an idea of how challenging fitting the new one will be.



As you know there are a few variations of deck belt set ups, most mowers will have one belt to drive the blades that are either a tension-ed or an un tension-ed belt. The belt can be fitted to both of these type set ups without removing the deck from the mower.



The timed belt set up is a little more involved but not complicated. It has two belts as do so some of the larger John Deere mowers. They can be a challenge as they have many pulleys and you'll need to remove the deck.









Pulley Covers

Likely you'll have already removed the 2 plastic pulley protection covers, one each side of the deck. Usually 2 or 3 screws each side. They're not there to protect the pulley, they're there to protect us from catching body parts in the pulleys. Ouch!



The latest generation mowers are far more challenging to access as the nice people in the health and safety dept have been working nights and weekends to find new ways to challenge us.









Removing Belt

With covers removed, start by removing the belt from the engine pulley. Often the engine pulley will have a belt guide, its job is prevent the belt from derailing. Depending on the type of belt guide (if fitted), you may need to remove them first.



As you know some belts will be tension-ed all the time. By tension-ed I mean the belt is tight around the engine pulley all the time. The belt tension-er will allow for movement (it's spring loaded) so the easiest way to do this is by pulling the belt over the side of the engine pulley, and then with both hands turn the engine pulley until the belt falls off. (Removing the spark plug makes turning the pulley easy)



With the belt off the engine pulley, it's easy to guide it off the other pulleys. Check your old belt against your new belt, just to be sure.



The un tesion-ed belt is simple to fit, and by un-tension-ed I mean the belt is loose around the engine pulley until you engage the blades. The belt can usually be maneuvered around the guides without much trouble. As with the tension-ed belt, remove the belt from the engine pulley first.





Fitting Belt

Reference your diagram or pictures of routing. Refitting the belt is indentical except in reverse order, fitting the engine pulley last, by pulling the belt on to the side of the pulley and turning the engine over.

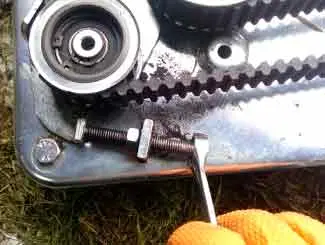

Timed Belt

Most mowers have a simple deck belt setup, others like the one covered in this guide are more complex. The demo mower used here has two deck belts driving the mowing deck. The first one is the main input belt and is powered direct from the engine. This belt is easy to replace and you don't need to remove the deck, just some plastic covers.



The second belt is the output belt and it turns both blades in time. This allows the cutting blades to overlap and catch that annoying tuft of grass you sometimes see in the middle of your cutting strip.



To replace the output belt also known as a toothed belt or timed belt, we need to remove the deck from the mower. It's not difficult to do and the whole job shouldn't take more than an hour.



This guide covers a timed deck belt replacement procedure. Most timed decks will look something similar. It's more complex than other deck belt setups but not difficult to work on. In this guide I will: remove the deck; inspect belts; replace the belt; tension the belt; set the timing of the blades.









Tools

No special tools needed on this mission, but an impact gun would make life a lot easier. When you try to open bolts attached to pulleys, they tend to spin which is a real pain. Sure you can wedge it or grab it with a grips, but you risk damaging the face of the pulley and that in turn can damage your new belt. Nooo!



The impact makes small work of pulley bolts, and the better brands have a torque setting built in which makes reassembly a gift. It's a super tool to have in the trunk of your car, it makes changing a wheel look Nascar slick. So treat yourself or drop a few hints before fathers day.





Chute


Riding mower CHUTE

On this model mower the chute is fitted through the center of the mower.

Not all mowers will have a chute like this. If your mower is side discharge, then you dont have one.

Remove


mowe deck arm

As said earlier, you may not need to remove your deck to fit a belt.

On this model mower, removing to fit the belt just makes life a little easier.

Ride-on mower chute

Chute

On this model mower the chute is fitted through the center of the mower.

Not all mowers will have a chute like this. If your mower is side discharge, then you don't have one.

Remove

As said earlier, you may not need to remove your deck to fit a belt.

On this model mower, removing to fit the belt just makes life a little easier.


Ride-on mower deck pin
Ride-on mower deck pin

Push

Locate the deck arms. Most mowers will have one at each of the four corners. The deck will be fixed to the deck arms with Cotter pins. (Some may have nuts and bolts) Remove the two front pins and the two rear pins.

Push

When all pins are removed, just push the deck sideways and it will pop off the arm bushing mounts.

Apply some grease when refitting.


Ride-on mower deck pin
Ride-on mower deck

Slide

The deck will be free to move forward, which allows you to remove the deck drive belt from the engine drive pulley.

In some cases you may have a cable to remove, this depends on the blade engage type.

Mower belt pulley

Remove

Remove the deck drive belt from the engine drive pulley, as you slide the deck forward.

Or if your leaving the deck on the mower, just pull the belt over the side of the pulley and turn over the engine (by hand) by turning the pulley, (spark plug removed) until the belt falls off.

Hey, I make that sound easy!

Push


Riding mowerdeck arm

Locate the deck arms. Most mowers will have one at each of the four corners. The deck will be fixed to the deck arms with Cotter pins. (Some may have nuts and bolts) Remove the two front pins and the two rear pins.

Push


riding mower deck arm

When all pins are removed, just push the deck sideways and it will pop off the arm bushing mounts.

Apply some grease when refitting.

Slide


Riding mower deck

The deck will be free to move forward, which allows you to remove the deck drive belt from the engine drive pulley. In some cases you may have a cable to remove, this depends on the blade engage type.

Remove


mower belt

Remove the deck drive belt from the engine drive pulley, as you slide the deck forward.

Or if your leaving the deck on the mower, just pull the belt over the side of the pulley and turn over the engine (by hand) by turning the pulley, (spark plug removed) until the belt falls off.

Hey, I make that sound easy!

Inspect


mower deck blades

Go ahead and turn the deck over to inspect the blades and blade boss (blade attachment). It's likely that the blades are damaged, if they are, replace them

Bent


mower solenoid test

If your blades are bent or worn, now is the time to take care of it.

Replacement blades are easy to fit when the deck is off.

Inspect

Go ahead and turn the deck over to inspect the blades and blade boss (blade attachment). It's likely that the blades are damaged, if they are, replace them.


Ride-on mower deck
mower bent blade

Bent

If your blades are bent or worn, now is the time to take care of it.

Replacement blades are easy to fit, when the deck is off.

Boss

When yor blade hits something hard, the blade boss pins are designed to break, this saves damaging more expensive components.


Ride-on mower blade boss
mower blade

Replace

Check washers and bolts for damage. Blade bolts and washers are specially designed, so only use origional kit.

Boss


mower blade boss

When yor blade hits something hard, the blade boss pins are designed to break, this saves damaging more expensive components.

Replace


mower blade

Check washers and bolts for damage. Blade bolts and washers are specially designed, so only use origional kit.

Remove


mower blade cover

Remove plastic protection covers.

Pulley


mower pulley

Remove the drive belt tension assembly.

Key


mower blade key

Remove and store safely the key and the spacer ring.

Remove


mower blade cover

Remove timed belt protective cover.

Belt


mower blade belt

Remove broken belt, and check for damage.

Loosen


mower belt pulley

Loosen both pulley bolts, the bolts are positioned on the underside of the pulley.

Remove


mower belt pulley

Remove the two guide bolts.

Remember to fit these after fitting the belt, but tighten last.

Loosen


mower blade

Loosen the two guide bolts.

Loosen


mower blade belt bolt

Loosen the locknut on the adjusting bolt, and thread it all the way out.

Push


mower blade

Now push the tensioning assembly in all the way so it hits the adjusting bolt.

Set to 90°


mower blades

Set the deck blades at 90° to each other.

Mark


mower deck pulley

Now push the tensioning assembly in all the way so it hits the adjusting bolt.

Routing


mower blade routing

This is a typical timed deck belt layout.

Align


mower belt

Keep your paint marks aligned and fit the belt to the tension assembly last.

Check


mower blade belt

Check your paint marks again, it's ok if your out by one or two teeth.

Adjust


mower belt adjuster

Adjust belt tension first, and tighten down locknut.

Do not tighten pulley bolts or guide bolts at this stage.

Check


mower blade belt tension

Check belt tension as you adjust. Leave some play in the belt, it should deflect by about 1/2" at its longest run.

Check 90°


mower blade belt tension mower blade spacer ring mower blade pulley key

Check that the blades are at 90 degrees.

If all is ok, go ahead and fit the guide bolts, but don't tighten yet.

Tighten the two pulley bolts, and now tighten the four guides.

Rebuild in reverse order and don't forget to fit the spacer ring and key.

That wasn't so bad!

Remove

Remove plastic protection covers.


Ride-on mower deck cover
mower deck pulley

Pulley

Remove the drive belt tension assembly.

Key

Remove and store safely the key and the spacer ring.


Ride-on mower deck cover
mower deck pulley

Remove

Remove timed belt protective cover.

Belt

Remove broken belt, and check for damage.


Ride-on mower deck

Loosen

Loosen both pulley bolts, the bolts are positioned on the underside of the pulley.


Ride-on mower deck
mower deck pulley

Remove

Remove the two guide bolts.

Remember to fit these after fitting the belt, but tighten last.

Loosen

Loosen the two guide bolts.


Ride-on mower deck
mower deck pulley

Loosen

Loosen the locknut on the adjusting bolt, and thread it all the way out.

Push

Now push the tensioning assembly in all the way so it hits the adjusting bolt.


Ride-on mower deck

Set to 90°

Set the deck blades at 90° to each other.


Ride-on mower deck
mower deck pulley

Mark

Now mark the two main blade pulleys and the deck body as per picture.

Marking them with paint gives us a clear referance point when fitting the new belt.

Routing

This is a typical timed belt routing.


Ride-on mower deck
mower deck pulley

Align

Keep your paint marks aligned and fit the belt to the tension assembly last.

Check

Check your paint marks again, it's ok if your out by one or two teeth.


Ride-on mower deck
mower deck pulley

Adjust

Adjust belt tension first, and tighten down locknut.

Do not tighten pulley bolts or guide bolts at this stage.

Check

Check belt tension as you adjust. Leave some play in the belt, it should deflect by about 1/2" at its longest run.


Ride-on mower deck

Check 90°

Check that the blades are at 90 degrees.

If all is ok, go ahead and fit the guide bolts, but don't tighten yet.

Tighten the two pulley bolts, and now tighten the four guides.

Rebuild in reverse order and don't forget to fit the spacer ring and key.

That wasn't so bad!


Ride-on mower deck Ride-on mower deck pulley Ride-on mower deck pulley

Related Questions

Why does my deck belt keep breaking? Common reasons, new belts keep breaking:



  • Wrong belt routing
  • Misaligned pulley
  • Damaged pulley
  • Belt guide missing
  • Belt guide damaged
  • Belt too loose
  • Belt too tight
  • Belt too narrow
  • Wrong belt type
  • Blade obstruction

Why does my mower deck shake? Mower decks commonly shake because:



  • Engine not at the correct rpm
  • Engine not running correctly
  • Blades damaged
  • Deck belt damaged or worn
  • Spindle bearing damaged or broken



Auto Technician and Writer at | Website

John Cunningham is an Automotive Technician and writer on Lawnmowerfixed.com. I've been a mechanic for over twenty years, I use my knowledge and experience to write "How to" articles that help fellow gear-heads with all aspects of mechanical repairs, from lawn mowers to classic cars.
